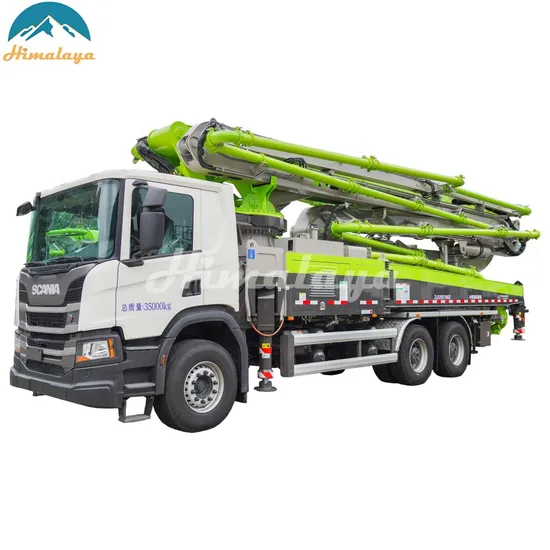

Zoomlion Customized Brand New Hydraulic 52m Mounted Concrete Pump Truck

• Overview
• Product Description
• Specification
• Company Profile

Overview

Basic Info.

Model NO.	ZZ5350THBSF 52X-6RZ
Type	Concrete Pump
Shotcrete Type	Wet
Machining Process	Hydraulic
Structure	Cylinder Type
Productivity	170m³/H
Feeding Height	1200-1500mm
Vibrating Amplitude	2-3mm
Certification	ISO9001: 2000, CE
Condition	New
Color	Green
Concrete Output	170m³/H
After-Sales Service Provided	1 Year After-Sales Service
Concrete Pump Type	Open
Weight	35000kg
Transport Package	Export Packaging: Usually Unpacked or Containerize
Specification	35000kg
Trademark	ZOOMLION
Origin	China

Product Description

Product Description Main structure reliability leads the industryThe arm, outrigger, and secondary beam (8 years, 450,000 cubic meters) will not crack; the reinforced concrete pipe support will not crack. The boom shaking is very low: through high-precision active vibration reduction technology, the amplitude of last boom is within ±0.2 meters, the lowest in the industry; Two independent hydraulic oil tanks:the hydraulic oil tank of the pumping system ,and the hydraulic oil tank of the boom and outrigger. The two hydraulic oil tanks are independent and not connected in series. Even if the hydraulic oil of the pumping system is emulsified (for example, the seal of the main oil cylinder is broken and water enters the hydraulic oil tank of the pumping system), the water cannot enter the hydraulic oil tank of the boom and outrigger, which will completely avoid the emulsification of the hydraulic oil of the outrigger and boom, thereby reducing the waste of hydraulic oil; The use of hydraulic oil is reduced by 30%, the life of hydraulic oil is increased by 1 time, and the operating cost is saved by 2,000 USD per year;

More importantly: the hydraulic oil of the boom and outrigger is always clean and free of impurities, this will protect the seals of the boom multi-way valve, boom balance valve, and boom cylinder, ensuring that they can be used for a long time without jamming; the failure rate is much lower!Specification

Item	Value
Power Type	Diesel
Max. vertical conveying distance	51.1m
Max. horizontal conveying distance	45.8m
Productivity	170m³/h
Place of Origin	China
Weight	35000kg
Warranty	1 Year
UNIQUE SELLING POINT	High operating efficiency
Core Components	Bearing, Gearbox, PLC, PRESSURE VESSEL, engine
Brand Name	ZOOMLION
Dimension(L*W*H)	12700*2530*4000mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
