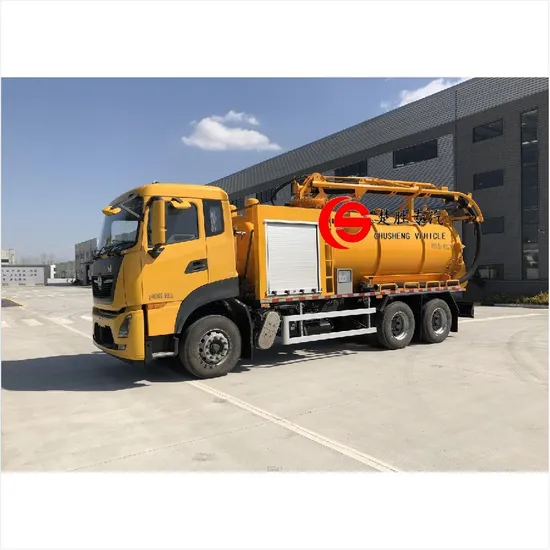

High Efficiency Dongfeng 6X4 Sewage Suction Truck for Urban Sewage Cleaning

• Overview
• Product Description
• Product Parameters
• Company Profile
• Certifications
• Professional Team
• Exhibition
• Packaging & Shipping
• Why Choose Us

Overview

Basic Info.

Model NO.	CSC20250715
Certification	ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard	Euro 2
Payload	20T
Transmission Type	Manual
Fuel	Diesel
Tank Volume	8000L-16000L
Drive Wheel	6x4
Hoesrpower	251-350hp
Condition	New
Engine Horse Power	290HP, 336HP, 371HP, 420HP.
Truck Brand	HOWO, Dongfeng, Foton, Shacman, FAW
Volume	3000L, 5000L, 8000L, 10000L, 12000L, 16000L
Truck Name	Cnhtc Sinotruck HOWO 6X4 Sewage Suction Truck, Fec
Vacuum Pump	Chinese Brand, Italy Brand or Other Imported Brand
Drive Type	Left Hand Drive(Right Optional)
Drive Model	4*2 6*2 6*4 8*4
Transport Package	Naked or Waxed Before Shipment
Specification	8000L-16000L
Trademark	CSC
Origin	China
Production Capacity	1000 Sets a Month

Packaging & Delivery

Package Size12000.00cm * 2500.00cm * 3500.00cm Package Gross Weight5000.000kg

Product Description

Functions and Features

• Powerful Suction Capability:The truck is equipped with a high-capacity vacuum system that can efficiently suck up sewage, sludge, and other liquid waste from septic tanks, sewage pits, and industrial wastewater ponds. The powerful suction ensures quick and thorough removal of waste.
• Large Storage Capacity:The truck features a large storage tank, typically with a capacity of several cubic meters, allowing it to hold a significant amount of waste before needing to be emptied. This reduces the frequency of trips to the disposal site, improving operational efficiency.
• Versatile Nozzle Options:The suction truck comes with various types of nozzles and attachments that can be used for different types of waste removal tasks. This includes flexible hoses for accessing hard-to-reach areas and specialized nozzles for specific types of waste.
• Self-Loading and Unloading:The truck is designed with a self-loading mechanism that allows it to easily load waste into the storage tank. It also features a self-unloading system that can discharge the waste at the disposal site without the need for manual intervention.
• Advanced Filtration System:The truck includes an advanced filtration system that separates solid waste from liquid waste, ensuring that the liquid can be safely discharged while the solid waste is transported to a proper disposal site. This helps in maintaining the cleanliness of the storage tank and reduces the risk of blockages. Product Parameters

  Parts	Item	Parameters
  Truck Chassis	Emission Standard	Euro 5
  	Gross Vehicle Weight(kg)	25000
  	Loading Capacity	11-20T
  	Fuel Type	Diesel
  	Tank Volume	12000L
  	Overall Dimenssion	12000*2500*3500mm
  	Drive Type	6*4
  Vacuum System	Vacuum pump	Liquid ring vacuum pump, provides high air flow along with high vacuum levels for removing materials below liquid surfaces.
  	Air flow rate	2800m3/h
  	Rotate speed	Max 1000rpm
  	Pump cooling	Cooling Water tank in stainless steel 1,000L, mounted just behind the drivers cab
  	Telescopic suction boom	Remote controlled, steel material. Swivel in both the vertical and horizontal plane.
  		270°horizontal rotation, 6m working radius, vertical lift up to 5.5m above ground and 1350mm extension
  	Suction hose	5", 10m, can be lengthened, with non-return valves
  	Shape	Cylindrical shaped tank with U-sectional external stiffening rings.
  Sludge Tank	Material	Mild steel
  	Capacity	Sludge tank 10,000L
  	Shell thickness	5mm
  	Dish thickness	5mm
  	Tank inner filter	Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose
  	Working pressure	-0.95bar
  	Tipping cylinder	Front single acting tipping cylinder with safety support, provided for 40° liquid removal.
  	Liquid level indicator	Glass indicator at the rear of tank.
  	Primary shut off	SS float ball prevents overfilling sludge tank.
  	Secondary shut off	Once the tank's full, ultrasonic level indicator is activated and vacuum pump is closed automatically, no need to shut it down from the control box.
  	Full opening rear lid	Hydraulically opening and locking

Product Description

The Dongfeng 6x4 Sewage Suction Truck is a specialized vehicle designed for efficient and effective sewage and sludge removal operations. It is widely used in municipal sanitation, industrial wastewater treatment, and construction site cleanup. Here are its key functions and features:
