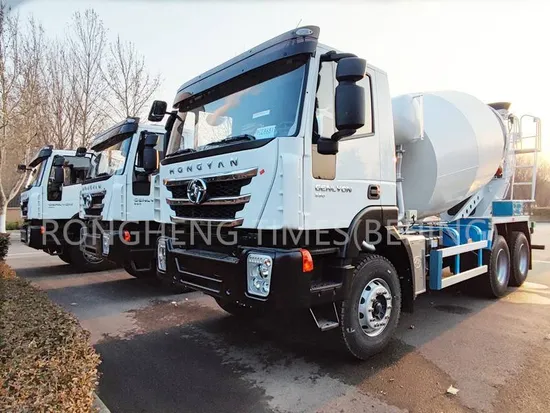

6 M Self

• Overview
• Product Description
• Product Parameters
• Hot Products
• Company Profile
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Model NO.	Cement Mixer Truck
Certification	ISO9000, CCC, TS16949, CE
Transmission Type	Automatic
Emission Standard	Chinav &Euo5
Displacement	9
Payload	20T
Fuel	Diesel
Drive Mode	6x4
Maximum Horsepower	300-400hp
Condition	New
Tank Body	9cbm
Rear Axles	Mcy13, 1X16000 Kgs
Chassis Type	Ca5310gjbp62K2t4e5
Engine Type	Ca6dl1-32e5/320
Wheelbase	1950mm+2900mm+ 1350mm
Feed Rate	>=3m³/Min
Discharge Speed	>=2m³/Min
Tank Capacity	300-400L
Transport Package	Bulk Ship
Specification	10150x 2520x 3995
Trademark	Customisation
Origin	China
Production Capacity	10000/Year

Product Description

Product features:
1, CNC laser blanking, small error, high precision; 2, tank using center axis positioning fixture for welding, effectively ensure the different cone of the coaxial and roundness; 3. Digital automatic welding is used in the welding seam of the butt cone section of the tank, which has high production efficiency, good weld shape and high quality. 4. Sand blasting is used for the tank and its parts, 5, the use of primer, mid-way, paint, color bar"Four spray four bake" spraying process, paint color bright, durable, customized patterns to meet customer needs; 6, the vehicle assembly process design is reasonable, strict and orderly quality control system, manufacturing high-quality products to provide protection.

The products cover 31 provinces of china, cities and autonomous regions, and export to more than 50 countries and regions.

Q1.Dose your company has your own factory? A:Yes,we have a factory ourself.which is in this business for 15 years in China. Our factory is in the trailer base LiangShan,ShanDong,China. Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q7. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Product Description Product Parameters

Vehicle and chassis parameters	Model	CLY5315GJB29E54
	External dimensions(LongxwidexHigh) mm	10150x 2520x 3995
	Chassis type	CA5310GJBP62K2T4E5
	Engine type/horsepower	CA6DL1-32E5/320
	Emission standards	ChinaV
	Equipment quality/rated load quality( kg )	14300/16570
	Wheelbase(mm)	1950+ 2900+ 1350
	Approach angle/Exit angle(°)	21/18
Specific performance parameters	Feed rate( m3/min )	≥3
	Discharge speed( m3/min )	≥2
	Discharge residual rate(%)	≤0.5
	Water supply system	Air pressure water supply
	Tank capacity( L)	300/450
