Overview

Basic Info.

Model NO.	JSXT20221006MS-aerial working platform truck
Transmission Type	Manual
Power	Diesel
Load Capacity	31-40t
Emission Standard	Euro 2
Drive Wheel	4×2
Engine Capacity	＞8L
Seats	≤5
Horsepower	251-350hp
Tire Certification	ECE, GCC, ISO, DOT
Tire Design	Tubeless
Dumping Type	Bidirection Dumping Style
Condition	New
Products Name	High Altitude Operation Truck with Working Bucket
Driving Type	Left or Right Driving for This Bucket Truck
Type	4*2/6*4/8*4/4*4/6X6 for Lift Truck
Dangerous Light	Rotate Top Dangerous Light for Bucket Boom Truck
Tires Rims	8.50V-20 for This Aerial Platform Working Truck
Internal Cargo Sizes(mm)	6000X2300X1500mm for Truck Mounted Aerial Lift
Truck Chassis Brand	HOWO, Sinotruk, Dongfeng, Shacman, Jmc
Color	White, Blue, or as Per Your Requirements
Brake System	Air Brake
Axle	Heavy Duty Truck Axle
Transport Package	Nude
Specification	8545*2496*3170
Trademark	JUSHIXIN
Origin	China
HS Code	8704230090
Production Capacity	500units/Months

Product Description

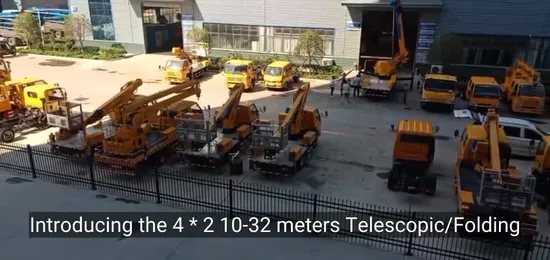

JMC Dongfeng Shacamn 4X2 10-32meter Telescopic/Folding Boom Mounted Hydraulic Manlift Cherry Picker Lift Aerial Work Platform Vehicles High Altitude Operation Elevator Lifting platform mounted on Single/double cabin Truck with Working Bucket

1. Manlift truck is also called Aerial platform truck articulated boom lift, truck mounted aerial platform, aerial work platform, hydraulic beam lifter, bucket truck ,bucket boom truck ,truck mounted crane ,truck mounted aerial lift ,telescopic platform truck , aerial working platform , truck mounted aerial working platform . 2. Features:
Aerial platform truck superstructure :
A. Aerial working height 14m,16m,18m,20m,20m,22m,24m,26m,28m,30m,32m.
B. the rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
C. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket
D. truck equipped with two rotating amber lights
E. Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.
Detail Display:

Truck FAQQ1. What is the minimum order quantity? Can the product be customized? A1:our MOQ is 1 unit. and yes, we can customized,we can produce trucks according to your special needs or requirements.Q2. What should I do if I have problems during the use of the truck? A2: We can supply English manual book and also take a video for showing how to resolve the problems, and you can also buy some spare parts together with your trucks.Q3. How long is your delivery time? A3: Trucks production time is about 20-30 working days.Q4. What is your after-sales service system? A4: trucks for 12 months warranty. Lifetime free technical consulting services and long-term factory price accessories support.Q5: What are the modes of transportation? A5: We can choose the Break Bulk, RORO, FR transportation and land transportation according to truck type and destination country.Q6: What are the payment terms for trucks? A6: We provide the EXW,FOB,CIF, DDU, DDP,etc.according to the specific situation.Q7: Which brand of the trucks will you prefer to purchase? A7: You can choose the brand of the HOWO, Sinotruk, Dongfeng, Shacman, FAW etc.Q8: Is it available to print our own brand on our truck?A8: Totally acceptable as you wish.

Product Description

Product Parameters

Product Specifications
product name			JMC HOWO 4X2 10-32meter Telescopic/Folding Boom Hydraulic Lift Cherry Picker Aerial Work Platform Vehicles High Altitude Operation Truck with Working Bucket
Model			JSXT5060JGK
Lifting Height			10meters;
Dimensions (mm)			5800×2000×2800
Loading Capaicty for the working bucket			200kgs
Self weight (kg)			5000
Emission Standard			EURO II
Engine			CY4100Q, Chaochai 95hp;
Gearbox			5gears gearbox;
Steering Type			Left Hand Drive
Vehicles' Frame			Straight reinforced type girder
Front/rear suspension (mm)			Front: 1130; rear: 1565
Departure angle			Front: 24; Rear: 16
suspension			Leaf spring 6/6+5;
Leaf spring			Front: 6; Rear: 6+5;
Axle			2.5 tons front axle and 5 tons rear axle;
Number of the axle			2pcs;
Wheelbase (mm)			Front: 1582; Rear: 1530;
Track (mm)			3300
Tire specifications			7.00/R16; 6+1pcs;
Driving Type			4*2;
suspension			Leaf spring
brake			Drum type
Braking System			Air brake
Spare tire carrier			Yes
light			Front position light, rear position light, rear tail light assembly, side return reflector.
Voltage			24v
Air Conditioner			with;
Cabin			Dongfeng Little Dolica Cabin, can be flipped;
Cargo box bottom plate material			Q235 Carbon Steel/3mm;
Cargo box side plate material			Cold rolled sheet bending/2mm;
Hoarding and deck board			Stainless steel fence and anti-skid walking platform
Power take-off system			Mechanical operation
working platform			(1200)1400x700x1150/mm
Boom form			Four-section hexagonal working arm, synchronous telescopic;
Rotary device			360 degree continuous rotation
Landing gear			Front V type, Rear H type, individually adjustable;
Operation			Work platform;
Controlling system			Electro-hydraulic proportional control system to realize stepless speed regulation;
leveling system			Hydraulic self-leveling
Security Configuration Instructions
Automatic interlocking device for getting on and off			It is used for interlocking on and off the vehicle to prevent the danger of misoperation.
Gondola			High Strength Aluminum Alloy 360 Degree Rotation;
Level detection function			Real-time detection of whether the vehicle is level;
Emergency electric emergency pump			When the engine and main pump fail, the crew can be sent back to the surface;
Emergency stop device			for emergency stop operation;
night safety warning device			There are engineering strobe lights, lights on the vehicle;
Vehicle level state tester			It can detect the tilting state of the vehicle in both horizontal and vertical directions;
Engine ignition off			Engine ignition and flameout control at turntable and platform;
real-time communication			Wireless intercom on platform and drop off;
