Overview

Basic Info.

Transmission Type	Manual
Power	Diesel
Load Capacity	3.5-20 Ton
Emission Standard	Euro 3
Drive Wheel	4×2
Engine Capacity	＞8L
Seats	≤5
Horsepower	150-250hp
Tire Certification	ECE, GCC, ISO, DOT
Tire Design	Tubeless
Dumping Type	Front Lifting Style
Condition	New
Engine Model	Wd615.47
Rated Power	371HP (273kw) at 2200rpm
Maximum Torque	500nm at 1100 - 1500rpm
Fuel Tank(L)	400
Transmission	Hw19710
Clutch(mm)	430
Front Axle	Hf9
Rear Axle	St16
Transport Package	Nuded
Origin	China
HS Code	8701909000
Production Capacity	5000

Product Description

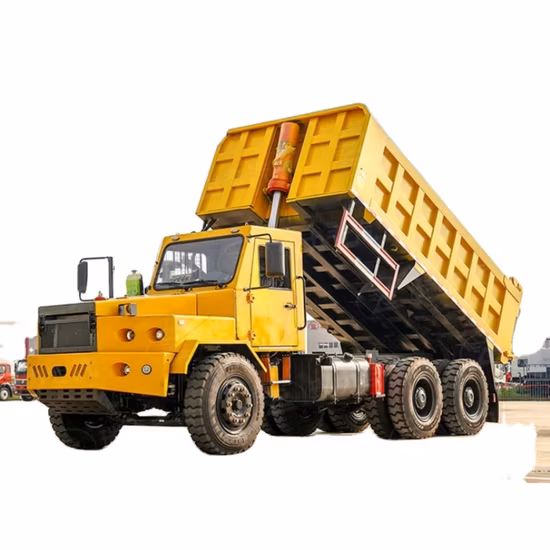

Dump truck refers to the vehicle that lifts the goods by itself through hydraulic or mechanical lifting. Also known as dump truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device. The structure of the engine, chassis and cab of the dump truck is the same as that of the general truck. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and the cab safety protection plate is provided at the front of the carriage. The engine drives the hydraulic pump through the transmission and the force taking device, and the hydraulic tipping mechanism of the carriage is composed of the oil tank, the hydraulic pump, the distributing valve, the lifting hydraulic cylinder, the control valve and the tubing. The engine drives the hydraulic pump through the transmission and the force taking device, and the high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the tubing, and pushes the piston rod to make the carriage tip over. Backward tilting is more common, and the movement of the piston rod can be controlled by a control system to stop the carriage in any desired tilting position. The carriage uses its own gravity and hydraulic control to reset.

Product Description

Category	Sub-item	Details
Basic Info	Brand/Type	Chinese Mine-Spec Dump Truck
	Drive Configuration	6×4 (3 axles, rear 4 wheels driven)
	Cab	Single-row, Closed (Basic Ventilation; A/C Optional)
	Condition	Brand New
	Origin	China
Powertrain	Engine Brand	Weichai (Mine-Spec)
	Engine Model	WP12.375E32 (375HP, Typical for African Mines)
	Engine Type	6-Cylinder, Turbocharged & Intercooled Diesel
	Displacement	11.596L
	Max Power	375 HP @ 1900 RPM
	Max Torque	1,800 N·m @ 1000-1400 RPM
	Transmission	Heavy-Duty Manual (10 Forward + 2 Reverse, Mine-Spec Reinforced)
Chassis	Front Axle	Mining-Spec (Load: 12,000 kg)
	Rear Axle	Double-Reduction Mining Axle (2×18,000 kg Load; Differential Locks)
	Suspension	Multi-Leaf Springs + Rigid Axles (Mine-Spec Anti-Shock)
	Braking System	Air-Over-Hydraulic (Dual-Circuit) + Spring-Actuated Parking Brake
Cargo Body	Type	U-Shaped Wear-Resistant Steel (Mine-Spec)
	Length	5,500-6,000 mm (Customizable for Tunnel Width)
	Width	2,800 mm
	Height	1,800 mm
	Volume	20-22 CBM
	Lifting System	Front-Hydraulic Cylinder (Mine-Spec High-Pressure)
Dimensions	Overall Length	8,200 mm (Typical)
	Overall Width	3,000 mm
	Overall Height	3,200 mm
	Wheelbase	3,800 mm (Short Wheelbase for Maneuverability)
Weight	Curb Weight	17,500 kg (Approx.)
	Gross Weight (GVW)	40,000 kg (Payload: 22,500 kg)
Tires	Specification	14.00R25 (Off-Road, Mine-Spec)
Safety/Adaptation	Mine Features	High Ground Clearance (350mm+), Rollover Protection, Dust-Proof Cab
Certification	Compliance	Mine Safety Certified (China & Export Markets)
Service	Lead Time	35-45 Days (Customization Included)
